Applications:

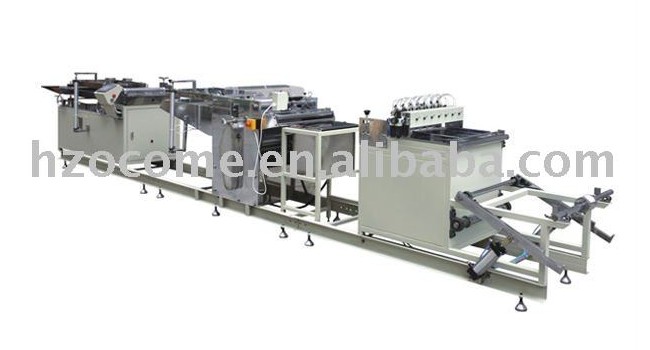

This machine is used for making the eco filter element

Consists

1,  Automatic paper de-coiler

2,  Filter  Pre-slitter

3,  Water steam device

4,  automatic counter

5,  Six marking rollers' device

6,  pre-heat fold device before pleated

7,  Paper pleat and collect system

8,  Conveyer device

9,  Paper formed heater

Specifications:

1,  Production speed: 0~30M/Min

2,  Products Width : 30mm(Min) - 420MM (Max.)

3,  Pleating Height: 12mm (Min.) ~ 50mm(Max.)

4,  Customize the roll sizes and shape

5,  Temperature control: normal ~ 300°C

6,  Heat power : 14KW

7,  Total power:  16KW

8,  Working Air pressure needed: 0.6MPa

9,  Power Supply: 380V/50HZ or customize it

10,  M/C Weight: 1100KGs

11,  M/C Size: 6000*900*1200mm (L*W*H)

Features:

1,  The round air pre-slitting knives can be easily adjusted and pressure is well balanced

2,  It adopts the water steam device,which is advantageous to prevent the paper from breaking when its mark by rollers.

3,  Six sets of the rollers are equiped in one circle tuming machine,which is easy to change the roller to catch different pleat heights.

4,   The roller were made to given the convex and cave shape on the paper when marking for making ECO filter.And to keep a certain distance between each two pleats,and even consistant.

5,   This automatically production line has the working process of auto count marking,pleating,pre-heat forming

6,   This machine has the stainless steel conveyer device,so the filter paper is pleated much more evenly and smoonthly.

7,  Computer controlling, easy operation.
