Applications:

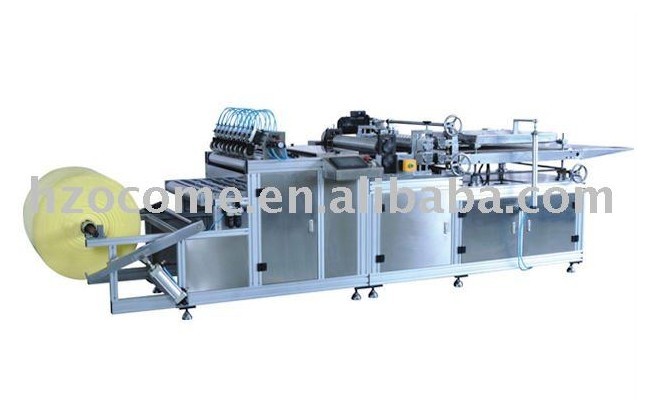

This machine is used for pleating and forming the HDAF filter element

Consists

1,  Automatic de-coiler

2,  Paper Pre-slitting machine

3,  Pre-heating devices before pleating

4,  automatic counter

5,  Water steam device

6,  Rollers marking machine

7,  Rollers and gear collecting device

Specifications:

1,  Production speed: 0~35M/Min

2,  Products Width : 30mm(Min) - 600MM (Max.)

3,  Pleating Height: 20mm (Min.) ~ 50mm(Max.)

4,  Customize the roll sizes

5,  Temperature control: normal ~ 300°C

6,  Main power : 12KW

8,  Working Air pressure needed: 0.6MPa

9,  Power Supply: 380V/50HZ or customize it

10,  M/C Weight: 1100KGs

11,  M/C Size: 3600*1170*1200mm (L*W*H)

Features:

1,  The pre-slitter uses pneumatic cutting round knife,which is adjusted simply and pressed evenly.

2,  This machine equips the pre-heating and water steam device,to prevent the paper breaking when roller marking.

3,  The machine equips the gear collecting system,so to faster the pleating speed and well pleated the paper.

4,  The rollers can be made with bubbled type or the pleat-lock type,which is used to maintenance the certain distance between two pleats.

5,  This high automatic machine has the process of the auto counting,pleating,pre-heating and forming.

6,  Computer controlling, easy operation.
