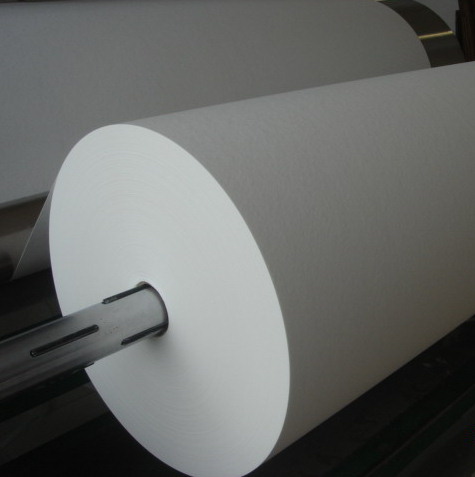

Fiberglass filter paper
1.made from glass microfiber
2.efficiency:99.9999%
3.performance of water repellency or anti-virus
Glass microfiber filter media, comprised primarily of glass microfibers, is produced with a wet laid process which is similar to that used in the production of paper. Our offerings range from various ASHRAE grades (F6-F9), HEPA grades (H10-H14) to ULPA grades (U15-U16) with exceptional dust holding performance and provide with the highest available efficiency at a minimal resistance to air flow. Our products are available in a laminated form to meet special air filtration requirements.
Applications: Industrial Cleaning Rooms, Food Processing, Hospital Operating Rooms, Genetic Research, Nuclear Containment, Pharmaceutical Processing, Chemical Processing, Compressor Inlet Filtration, Equipment Intake/Exhaust Air, Gas Turbine Air Intake, High-Temperature Industrial, HVAC System, Paint Spray Booth, Prefiltration for HEPA Systems, etc.
Specification:
|
Classification
|
Grade
|
Efficiency(≥%)
|
Basic Weight
(+-5g/m2)
|
Thickness
(±0.02mm)
@100kpa
|
Air Resistance
Pa @5.3cm/s
|
Tensile
Strength
|
Stiffness
( ≥mg)
MD
|
|
(+-200N/M)
MD
|
|
ULPA
|
HZO -U17
|
99.9999
|
73
|
0.37
|
500+-20
|
1200
|
1000
|
|
HZO-U16
|
99.999
|
73
|
0.37
|
440+-20
|
1200
|
1000
|
|
HZO -U15
|
99.997
|
73
|
0.37
|
390+-20
|
1200
|
1000
|
|
HEPA
|
HZO -H14
|
99.993
|
70
|
0.34
|
340+-20
|
1200
|
1000
|
|
HZO -H13
|
99.97
|
70
|
0.34
|
290+-20
|
1200
|
1000
|
|
HZO -H12
|
99.93
|
70
|
0.34
|
250+-20
|
1200
|
1000
|
|
HZO -H11
|
97
|
70
|
0.34
|
120+-20
|
1200
|
1000
|
|
HZO -H10
|
85
|
70
|
0.34
|
80+-15
|
1200
|
1000
|
|
ASHRAE
|
HZO -F9
|
70
|
70
|
0.34
|
55+-10
|
1200
|
1200
|
|
HZO -F8
|
60
|
70
|
0.34
|
35+-5
|
1200
|
1200
|
|
HZO -F7
|
50
|
70
|
0.34
|
33+-5
|
1200
|
1200
|
|
HZO-F6
|
40
|
70
|
0.33
|
20+-5
|
1200
|
1200
|
1. Efficiency and Air Resistance were tested by TSI8130, 0.3µm 5.33cm/s(EN779)
2. Other specification is also available according to customer's requirement or sample. Dimensions and packing conditions can be selected.
|
